Technical Parameter of fertilizer roller compactor granulator/double roller type fertilizer pellet machine/organic fertilizing plan
|
Model |
MSJZ-1T |
MSJZ-1.5T |
MSJZ-2T |
MSJZ-3T |
|
Capacity |
1t/h |
1.5t/h |
2t/h |
3t/h |
|
Grantular diameter |
3-10mm |
|||
|
Grantulator strenth |
6-20N |
|||
|
Granulation rate |
>>=90% |
|||
|
Material Moisture Content |
2%-9% |
|||
|
Granulation temperature |
normal temputure |
|||
|
Power |
11kw |
18.5kw |
22kw |
37kw |
|
Roll skin size |
150*220mm |
150*300mm |
185*300mm |
300*300mm |
|
Dimension |
1450*800*1450mm |
1450*850*1500mm |
1630*850*1650mm |
1850*1100*2050mm |

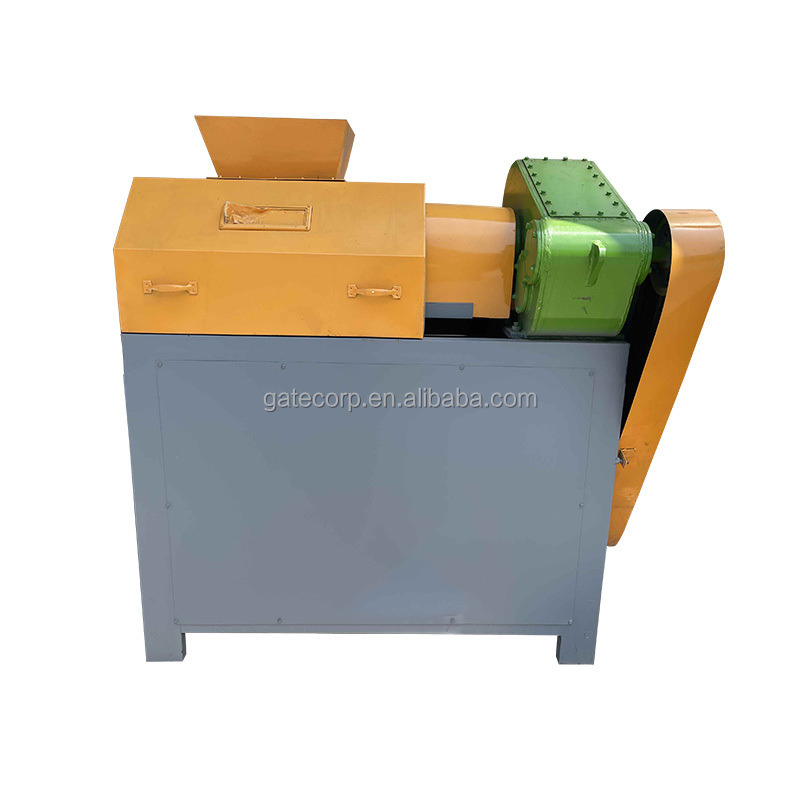

Introduction of fertilizer roller compactor granulator
fertilizer roller compactor granulator is the key equipment for compound fertilizer granulation. It uses squeezing principle to form fertilizer particles with diameters of 3.5-10mm in one time. The shape and size of the ball socket on the roller shell can be customized by customer. Double Roller Granulator has higher granulating ratio of over 95%. With no drying technology, materials will be pressed into ball shape to meet the requirements of compound fertilizer production.
Feature of fertilizer roller compactor granulator
1. No drying process, normal temperature granulating, one-step forming.
2. Low energy consumption and no waste water or gas emission
3. Easy operation and maintenance, no need installation.
4. Press rollers adopt new metal which is resistant to corrosion, wear and impact.
Advantage of fertilizer roller compactor granulator
1. Reasonable structure, machines will be tested before transporting and roller will be polished in perfect using
2. Wide application scope: no only for NPK fertilizer production, but for cat litter working
3. High granulating ratio, higher than 95%
4. No drying need, simple working make big benefits
5. Environmental working, low energy consumption and no waste emission
Working principle of fertilizer roller compactor granulator
This series of Double Roller Granulator is extruded model, and its working principle is: Electromotor drive the belt and pulley, then it is transmitted to the driving shaft by the speed reducer, and by synchronizing the open gear with the passive shaft, achieving the working in the same direction. Material is added from the hopper, after the roll extrusion forming, demoulding pelletizing; and through a chain, the balls are transferred to the broken screen studio, sieving and isolate the finished products (the balls), then return to mix with new materials and granulate again.
Our company passed ISO9001-2000 quality system certification, the quality of the products for the enterprise and provide a strong guarantee.Except domestic provinces and regions,our factory has been long selling its products to such countries as Russia,Mongolia,Vietnam,Thailand,Burma,Australia,Senegal,South Africa,Roumania,Brazil,Chile,Ecuador and so on,enjoying certain international popularity.
Main products:
10,000-500,000 T/YEAR NPK Compound Fertilizer Granulation Production Line
10,000-300,000 T/YEAR Organic Fertilizer Granulation Production Line
10,000-300,000 T/YEAR Compost Fertilizer Granulation Production Line
10,000-300,000 T/YEAR Organic-Inorganic Fertilizer Granulation Production Line
10,000-15,000 T/YEAR Potassium Sulphate Production Line
Pre-sales Service
After-sales Service
1) Why Choose GATE Technology To Be Your Professional Supplier of Fertilizer Machine?
HENAN GATE HEAVY INDUSTRY MACHINERY TECHNOLOGY CO.,LTD is a leading and professional manufacturer of fertilizer machine and whole fertilizer production line in China. We are expertise in manufacturing high quality equipment for fertilizer production. We believe in "Great Achievements Through Excellence!" As for management principles, we insist on High Quality, Great Mission and Extraordinary Values.
2) What We Can Provide for Our Customers?
We can provide whole line of service, from technical consultancy, CAD drawing design, factory design, equipment production, shipment, and dispatch professional engineers to guide for installation and commissioning service, training your workers and technical stuff. Also, we have sufficient stock of spare parts, we can provide the spare parts at very fast speed and lowest cost.
3) What's the Production Period of the Fertilizer Machine?
for single fertilizer machine, our production time is 7 days;and for whole fertilizer production line, our production time is no more than 30 days.
4) What's the Quality Guarantee and Certifications?
all of our machine have passed ISO and CE certification, we can guarantee the highest quality and our warranty time is 18 months after shipment date.
5) Will Gate Technology Dispatch Engineers for Installation and Training Work?
Gate will dispatch engineers to help customers for the installation and commissioing work of the machines, and provide training service for all of our customers.
