5 t/h NPK fertilizer production line made in China Shunxin factory
1. Brief introduction of Compound fertilizer production line:
Compound fertilizer production line is widely applied to produce compound fertilizer and the capacity ranges from5000-200000 tons/year. It can granulate NPK fertilizer, NP, ANP, DAP, MAP, CAN, SSP and other materials into compound fertilizer particles in one processing line. This equipment can specially used for manufacturing compound fertilizers with different concentrations and types, such as organic fertilizers, inorganic fertilizers, biological fertilizers, and magnetic fertilizers, etc. It is mainly used for producing spherical particles with a diameter ranging from 1mm to 3mm.

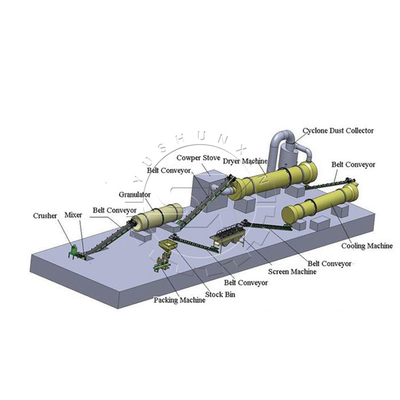

1.Batching machine
For many kinds material weighting and send to next machine
2. Mixing machine
The mixed material should be mixed completely ,then get into granulator .
3. Granulation machine
Processing powder to granules.
4. Drying
After granulating, the moisture of fertilizer is bit high ,it’s not suitable for long-term storage so need drying process.
5. Cooling
The cooling machine is used to cool the hot fertilizer.
6. Screening
There are some non-uniform particles ,after sieved screening machine , the small particle diameter may be screened down for twice processing. And bigger granules go to the crusher machine again.
7.Crusher machine
For bigger granules from screening machine.
8.Coating machine
For compound fertilizer coating
9.Packaging
Filling the bags, and sealing. After package ,the fertilizer can be sold .
| Model | Capacity (t/h) | Capacity(t/year) | Power(kw) | Rotary Speed |
| 1240 | 1t/h | 4000t/year | 5.5kw | 17r/min |
| 1260 | 2t/h | 7000t/year | 5.5kw | 17r/min |
| 1540 | 3t/h | 11000t/year | 7.5kw | 11.5r/min |
| 1560 | 4-5t/h | 20000t/year | 11kw | 11.5r/min |
| 1580 | 5-6t/h | 22000t/year | 11kw | 11.5r/min |
| 1860 | 6-8t/h | 30000t/year | 15kw | 11.5r/min |
| 2080 | 8-15t/h | 50000t/year | 18.5kw | 11r/min |
