Hot Sale High Efficency Fertilizer Granule Rotary Vibrating Screen Equipment Sand Screening Machine

1.0 Sets
MOQ
Hot Sale High Efficency Fertilizer Granule Rotary Vibrating Screen Equipment Sand Screening Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Machine Type: Foundry Machinery
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 18 Months
Core Components: PLC, Engine, Motor
Voltage: According To Customer Requirements
Dimension(L*W*H): According To The Machine
Warranty: 18 Months
Key Selling Points: Easy To Operate
Showroom Location: None
Applicable Industries: Casting, Cast Steel, Ceramics, Glass
Weight (KG): 1000
Product Name: Sand Mixer Machine
Color: Customized Color
Raw Material: Steel Iron
Technology: Green Sand Casting Technology
Advantage: Small Energy Consumption
Easy Operation: Automatic Control
Production Ability: 20T/H Etc
Feature: High Efficency
Usage: Foundry Pieces
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard container
Supply Ability: 3 Set/Sets per Month
Product Description
Product number
Product name
Drum diameter（mm）
productivity（ton/h）
Motor Power（kw）
Dust removal air volume（m³/h）
S4311
Hexagonal sand screening
1120
20-30
3
3000
S4313
Hexagonal sand screening
1300
35-45
5.5
5000
S4315
Hexagonal sand screening
1500
55-65
7.5
8000
S4318
Hexagonal sand screening
1800
80-90
11
11000
S4321
Hexagonal sand screening
2100
110-130
18.5
16000
Performance specification

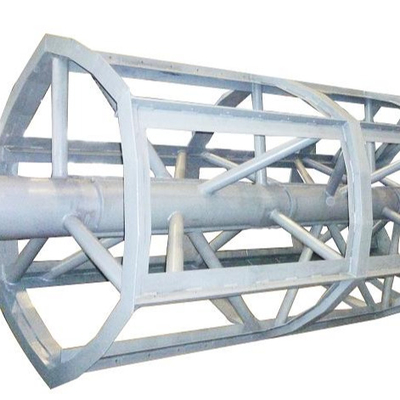

The sand screening machine is a kind of high-efficiency fine hexagonal screen produced by introducing European technology. The screening process is reasonable: the large head feeds into the screen, the small head discharges the waste, the screen area is equivalent to 30-40% increase, the small diameter screen is adopted, the productivity is still high, and the particles larger than 60% of the screen diameter are removed. The increase of the rotating speed of the screen cylinder is close to the theoretical rotating speed of the ball mill, and the materials rush down from the near high point of the screen cylinder. At the same time, due to the high-speed bumping and collision of the hexagonal screen cylinder, the used sand agglomerates reach fine crushing and screening. The feed inlet is increased by 200 mm and the inclination angle is increased without sand plugging. The recovery of used sand is more than 96%.
6 × 16mm high strength and high hardness cold drawn stainless steel wire is used to weave the screen mesh. The tension mechanism is tight on the screen frame, which is not easy to wear and break. The service life of the screen mesh is more than 5 years. It is suitable for fine crushing and screening of old sand of wet and hot clay.
The ratio of the length and diameter of the sieve cylinder is increased from 1.5-2:1 of the old sieve to 3:1, which is not only
conducive to fine screening, but also has a large screening area and a long distance. Proper ventilation of the sieve body can make the hot used sand reach a certain cooling effect. The outer cover of the hexagonal screen is provided with a dedusting port which is connected with the dedusting pipeline, and the dedusting effect is good.
