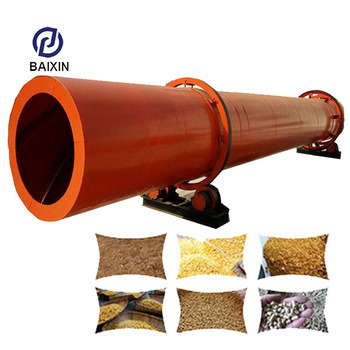

Cheap Price Hot Air Rotary Dryer Chicken Manure/Cow Dung Dryer In China
1.Barrel
2.Front roller ring
3.After the roller ring
4. Gear
5.Block roller
6.Carrier roller
7.Small gear
8.Discharge machine
9.Lifting plate
10.Reducer
11.Motor
12.Hot air channel
13.Feed chute
14.Furnace
15.Cyclone
16.Induced draft fan
Cheap Price Hot Air Rotary Dryer Chicken Manure/Cow Dung Dryer In China
1.The material walk into the rotary dryer by conveyor through the feeder machine of the dryer.Inside the rotary dryer have lifting plate,it can make the material up and down.Also before the rotary dryer have heat source,the fan will absorb the heat walk into the dryer.The heat and material will totally contact inside the rotary dryer. So the material will be dry.The fan settled after the cyclone,it absorb the heat inside the dryer,and inside the dryer will have negative pressure.The heat must walk into the dryer.
2.The rotary dryer speed can adjust through the transmission parts.It through motor,reducer,small gear.then get the dryer speed rotation.Inside China the motor is 380V/50HZ.If not same in our country,we can customize for you.
3.At the start of the dryer and the end of the dryer have temperature detector,so that you can check everywhere temperature inside the rotary dryer.
4.After the dryer have cyclone,it also called dust collector,it can collect the dust out from therotary dryer and protect the environmental.
5.The temperature also can adjust through the quality flow walk into the dryer,the fan flow,speed of the dryer etc.
Cheap Price Hot Air Rotary Dryer Chicken Manure/Cow Dung Dryer In China
1.The continuous drum dryer have reasonable structure, dry the material quickly.
2.Simple design, self-insulation, improve the heat efficiency to exceed 80%.
3.Structure delicate, stable operation.
4.good drying performance, coal consumption <8kg when drying 1 ton material.
5.The fuel can be coal, oil, natural gas etc, dry mass, granule and powder material.
6.Reduce land area for 50% compared to single drum rotary dryer, so construction investment is saved 50%,power consumption saved 60%.
7.Finished product moisture can be adjusted depends on requirement of client.
8.Lower outlet temperature, longer dust removal using life.
9.Drive by tug not gear.
10.Finished product temperature lower than 60°C, packing can be done continuously.
Cheap Price Hot Air Rotary Dryer Chicken Manure/Cow Dung Dryer In China
a. Wood: sawdust, small wood chips, wood veneer, pine sawdust, wood shaving,wood flake,etc.
b. Ore: ore,slag,mineral power,limestone, quartz, fluorite powder, sand ,iron ore,metal ore concentrates, metal tailing, coal,fly ash,etc.
c Metal: metal powder, iron powder, iron filings, steel scrap, copper filings, cooper slag,etc.
d. Chemical industry: gypsum powder of desulphurization gypsum stir-frying half water model and building gypsum powder,clay, semiautomatics earth, kaolin,bauxite
e. Fertilizer: compound fertilizer, organic fertilizers, inorganic fertilizers,ammonium sulfate fertilizer,etc.
f. Agriculture: straw, grass, turf, animal manure,animal forage, fiber, EFB, coconut fiber,brewer grain.
1) Free training to every customer.
2) Install and debug the equipment, ensure the dryer running smoothly.
3) Examine the equipment regularly.
4) Provide technical exchange and support.
5) Provide maintenance for big items.
1. we have our own factory, our own workshop, not rent.
2. we have qualified technical workers, ensure the food dryer machine well-made.
3. we have our own technical team and installation department, we can guarantee overseas services.
4. we have rich stock for check, also can delivery machine as soon as possible.
Packaging: Our continuous rotary dryer put into standard container 20GP 40GP Or 40HQ.
Delivery Detail: 20 days after receiving the deposit.
Delivery time: 20 workdays usually
Payment term: 50% as prepayment by T/T and the balance before delivery from China.
Quality Guarantee Terms:
Quality guarantee term is one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
If you are interested in our High capacity mechanical design mini continuous cow manure rotary dryer drum manufacturers with low price, please contact with us. For these kinds of machine we have successful working sites can visit.
Success working sites for tomato,onion,ginger,cassava chips,potato,cabbage,herbal,tea leaves,pepper etc.
Industrial large capacity Small Coal Cow Chicken Manure Coconut Copra Sludge Wood Chip Shaving Sawdust Rotary dryer.
