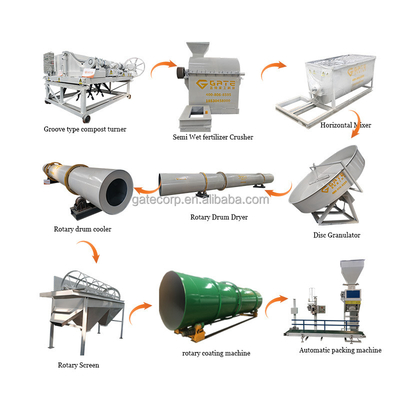

Pan disc granulator production line to make npk compound fertilizer granulator
1. Introduction of disc granulator
disc granulator is widely used for producing round type organic fertilizer and compound fertilizer, which are convenient for transportation and storage. Having the features of uniform granules processing, high granulation rate, smooth running, and long service life, Fertilizer Machinery is an ideal forming machine for your fertilizer production.organic fertilizer disc pelletizerFertilizer Machinery are manufactured in our factory. They vary with inner diameter, side height, and rotating speed. Customers can choose whichever model of fertilizer granulator in the light of their production capacity.
2. Main Advantages of organic fertilizer disc pelletizer disc granulator
1. Granulation rate reaches above 95%.
2. Labor intensity will be better reduced and labor efficiency will be improved.
3. Long equipment service life.
4. Hard frame using and high quality parts.
5. Granulator’s main gears adopt high temperature quenching technology, doubling the service life.
6. The granulator disc lining is antiseptic and durable.
4. Raw Materials for organic fertilizer disc pelletizer disc granulator
1.Chemical materias:
urea, ammonium sulfate, ammionium chloride, producyion, monoammonium phosphate, diammonium phosphate, calcium superphosphate, calcium-magnesia phosphate fertilizer, potassium chloride, potassium sulphate, potassium sulphate, potassium sulphate magnesium
2. Organic materials:
1.Agricultural waste: straw,dregs of beans,cotton dregs,rice bran,etc.
2.Animal manure: mixture of poultry litter (PL) and animal waste(AW),such as,Slaughterhouse Waste,Fish Market,Urine and dung of cattle,Pigs,Sheep,Chicken,Ducks, Geese,Goat.etc.
3.Industrial waste: wine lees,vinegar residue,manioc waste,sugar scum,furfural residue etc.
4.Home scrap: food waste,bones,the roots and leaves of vegetables etc.
5.Sludge: the sludge of the river,the sewer,etc. compound fertilizer making machine
Technical Parameter of organic fertilizer disc pelletizer disc granulator
| Model |
Disc Dia (mm) |
Side Height (mm) |
Rotary Speed (min) |
Power(kw) | Capacity(T/H) |
Dimension (mm) |
| GTZD-500 | 500 | 200 | 32 | 0.55 | 0.02-0.05 |
650*600*800 |
| GTZD-600 | 600 | 280 | 33.5 | 0.75 | 0.05-0.1 |
800*700*950 |
| GTZD-800 | 800 | 200 | 21 | 1.5 | 0.1-0.2 |
900*1000*1100 |
| GTZD-1000 | 1000 | 250 | 21 | 1.5 | 0.2-0.3 |
1200*950*1300 |
| GTZD-1200 | 1200 | 250 | 21 | 1.5 | 0.3-0.5 |
1200*1470*1700 |
| GTZD-1500 | 1500 | 300 | 21 | 3 | 0.5-0.8 |
1760*1500*1950 |
| GTZD-1800 | 1800 | 300 | 21 | 3 | 0.8-1.2 |
2060*1700*2130 |
| GTZD-2000 | 2000 | 350 | 21 | 4 | 1.2-1.5 |
2260*1650*2250 |
| GTZD-2500 | 2500 | 450 | 14 | 7.5 | 1.5-2.0 |
2900*2000*2750 |
| GTZD-2800 | 2800 | 450 | 14 | 11 | 2-3 |
3200*2200*3000 |
| GTZD-3000 | 3000 | 450 | 14 | 11 | 2-4 |
3400*2400*3100 |
| GTZD-3600 | 3600 | 450 | 13 | 18.5 | 4-6 |
4100*2900*3800 |
