Introduction :

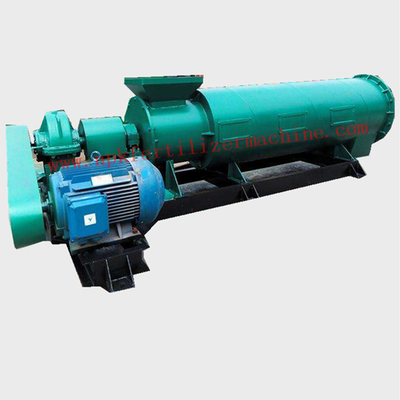

Drum granulator is one of the key equipments in the compound fertilizer industry. It is suitable for large-scale production of cold and hot granulation and high, medium and low concentration compound fertilizer.
working principle:
The main working mode is granulation wet granulation. After a certain amount of water or steam, the basic fertilizer is fully chemically reacted in the cylinder, and under certain liquid conditions, the rotation of the cylinder is used to make the material particles Produce a squeeze force to form a ball
2:Feature :
The body part is welded with high-quality medium carbon steel plate, built-in special rubber lining or acid-resistant stainless steel lining plate, which realizes automatic mites removal and tumor removal, eliminating the traditional scraper device.
3:Application various fertilizer :
1)NPK fertilizer 2)compound fertilizer
3)chemical fertilizer 4)phosphate fertilizer
5)potassic fertilizer 6)mineral powder
7)ammonia fertilizer 8)inorganic fertilizer
4:Application various raw material :
1)NPK 2)chemical material 3)phosphate
4)potash 5)metal ore powder 6)animal manure
7)house refuse 8)other chemical and inorganic raw material
,
|
Model |
Power |
reducer |
capacty |
Granules size |
Diameter |
length |
|
HY1206 |
5.5KW |
ZQ350 |
3-4T/H |
>2mm |
1200 |
6000 |
|
HY1506 |
11KW |
ZQ400 |
4-5T/H |
>2mm |
1500 |
6000 |
|
HY1807 |
15KW |
ZQ500 |
6-8T/H |
>2mm |
1800 |
7000 |
|
HY2008 |
18.5KW |
ZQ500 |
10-12T/H |
>2mm |
2000 |
8000 |
My little advise for your reference:
If you want to make high nitrogen fertilizer granules with very high capacity,you can consider this.
